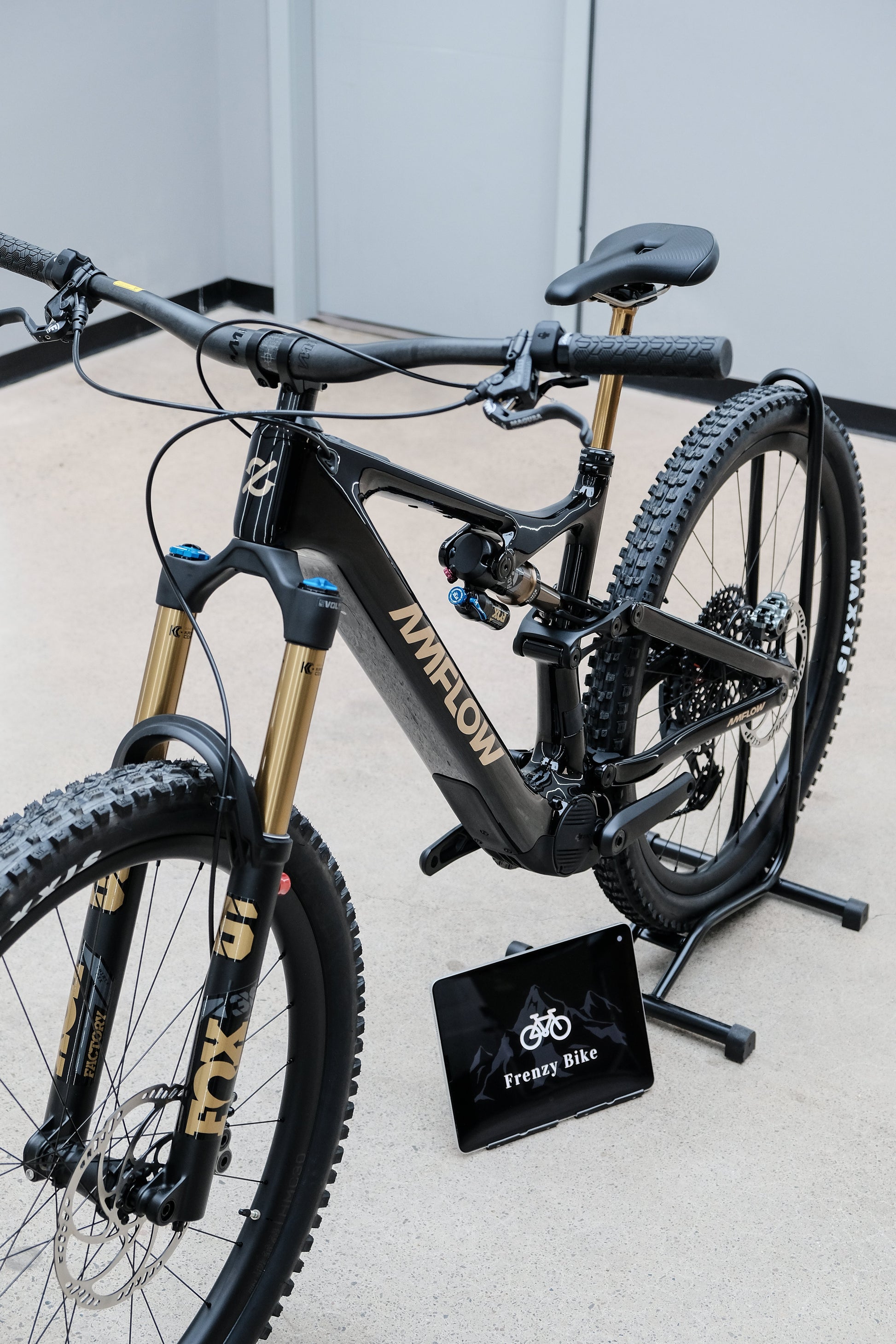

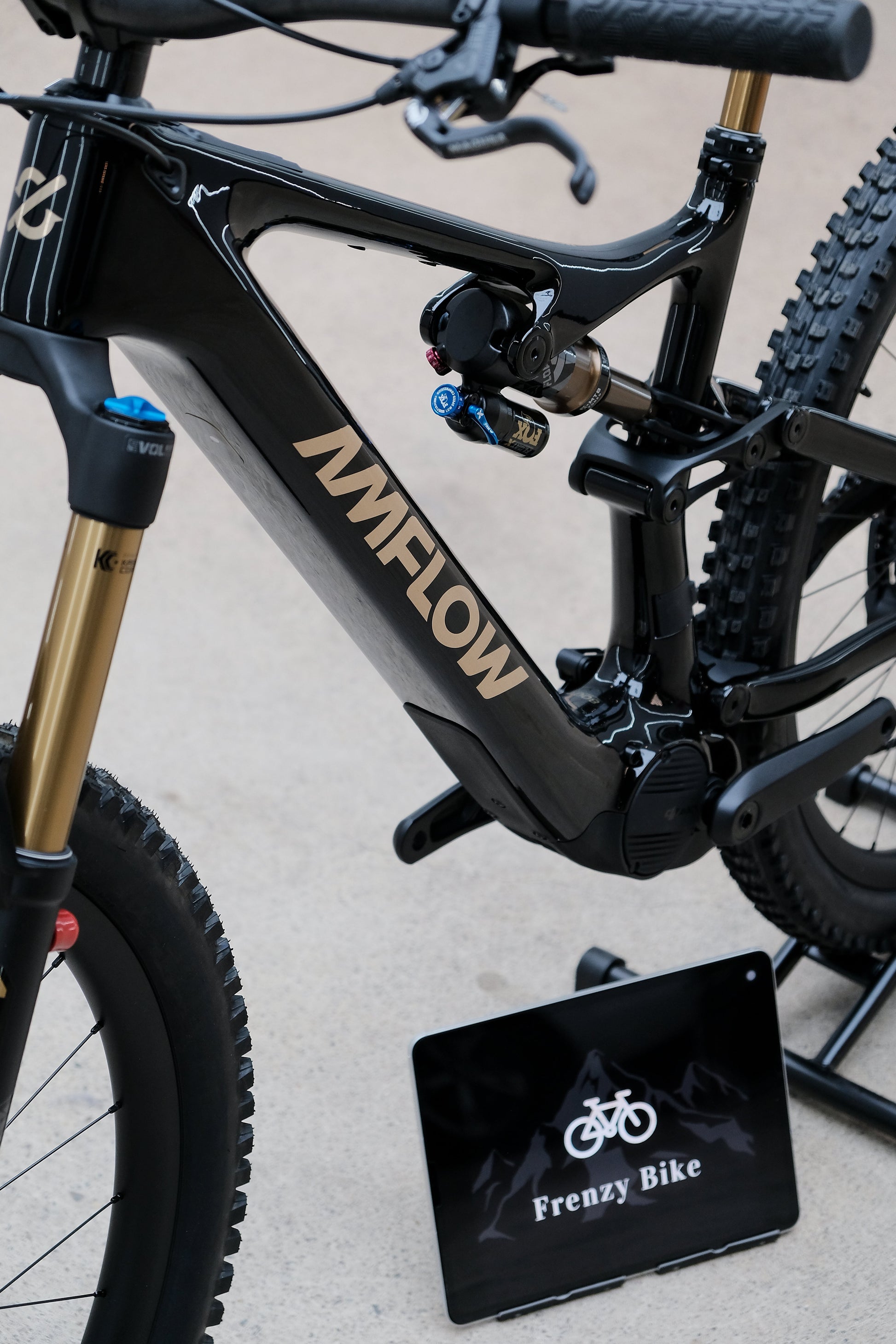

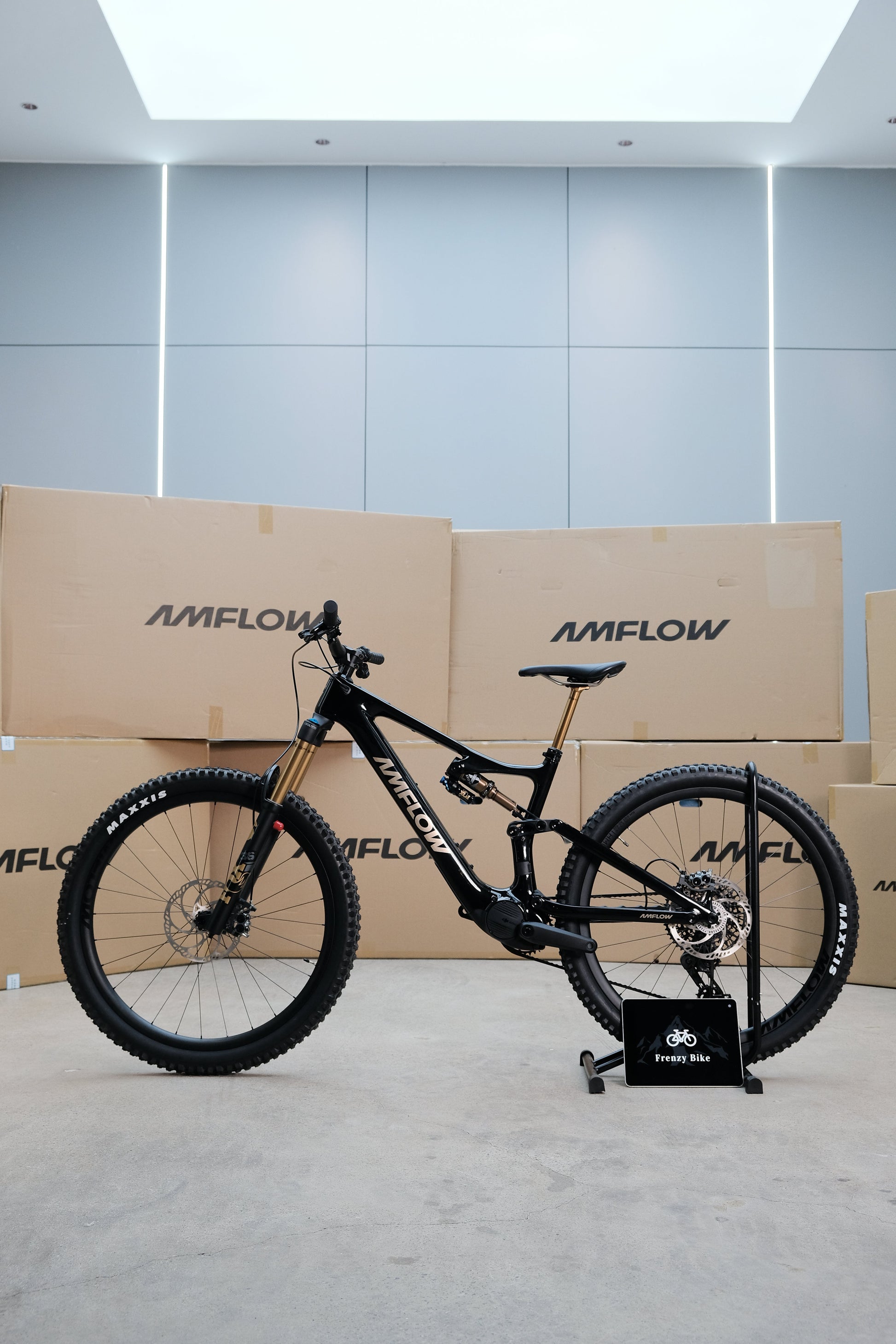

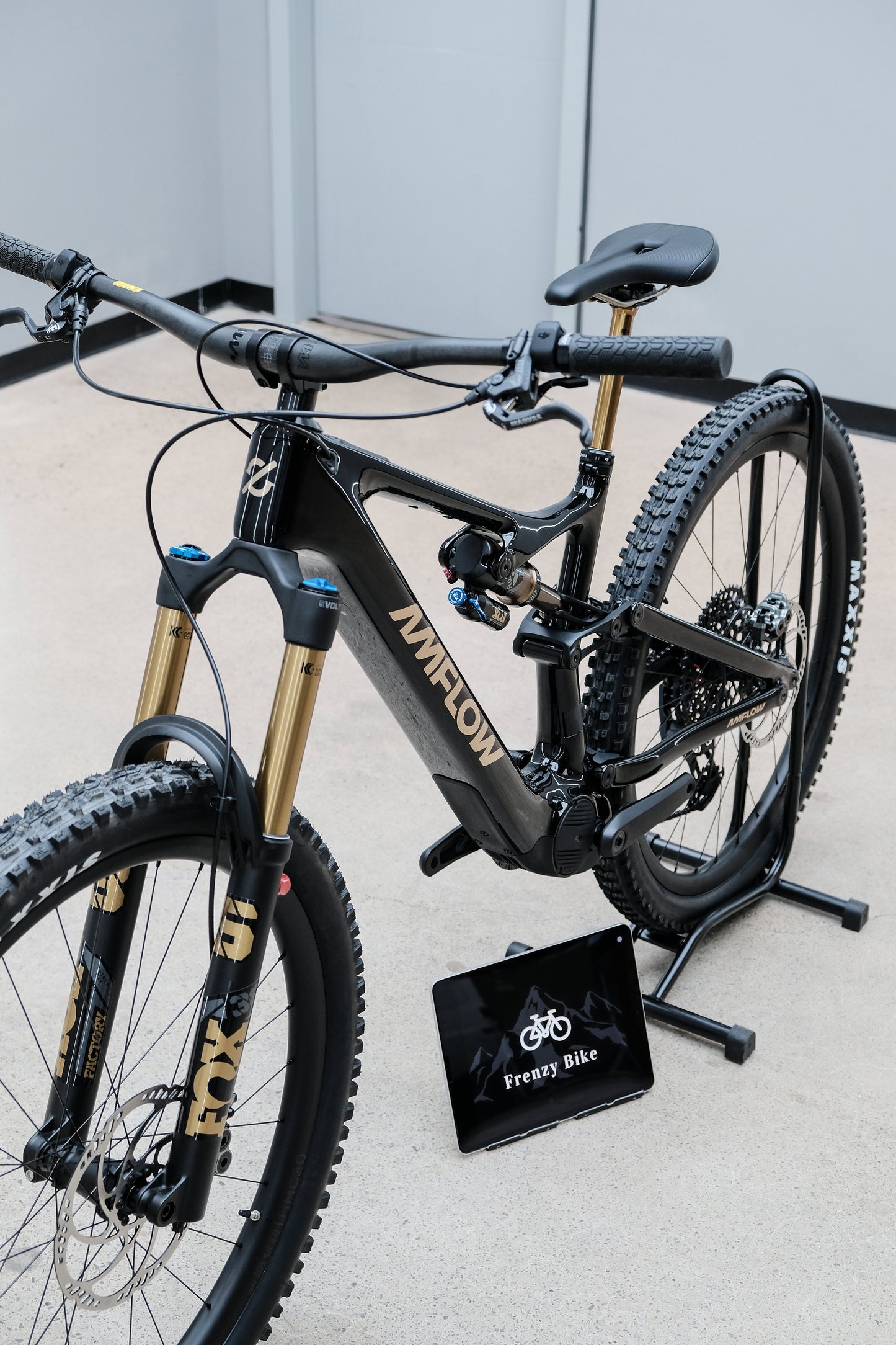

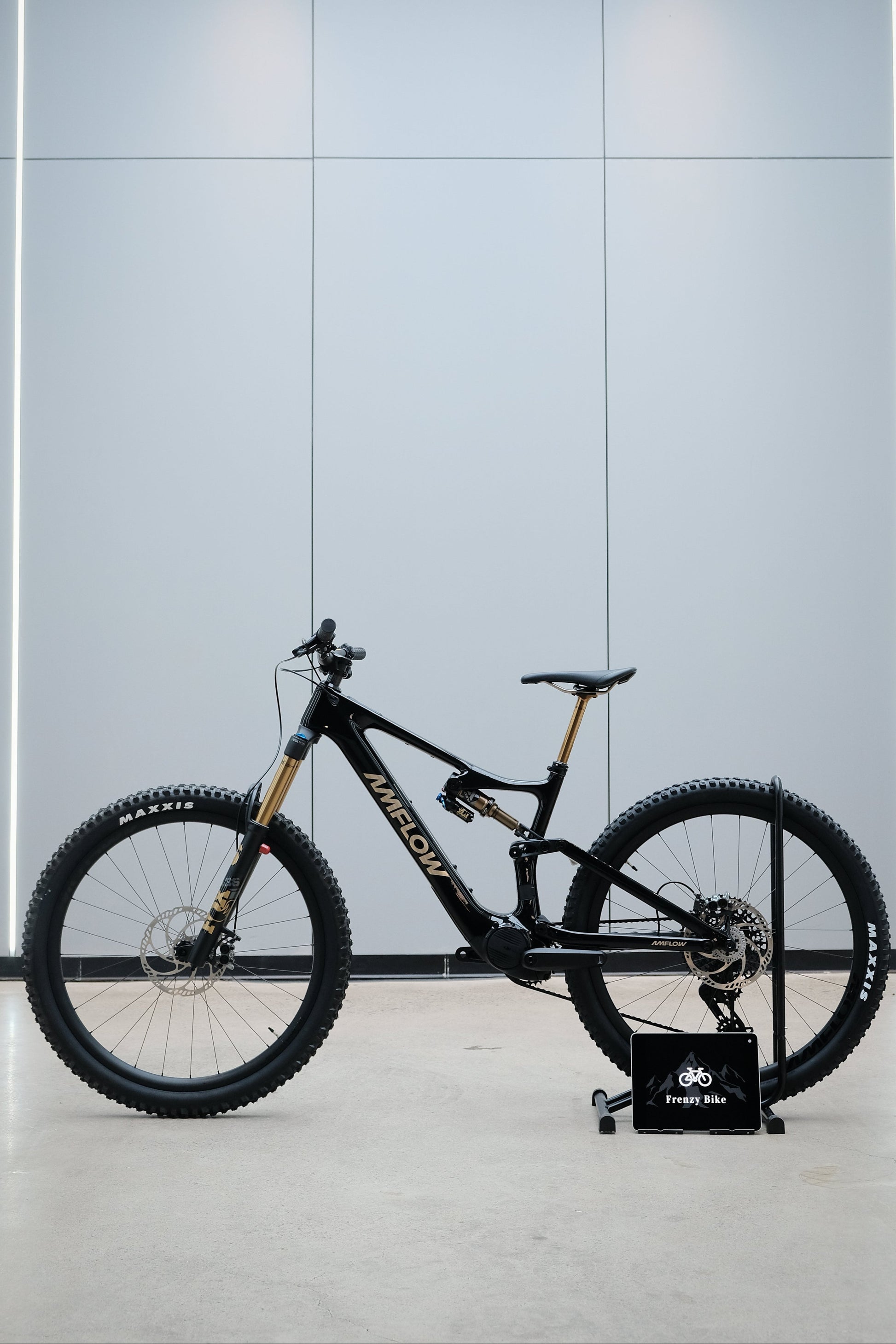

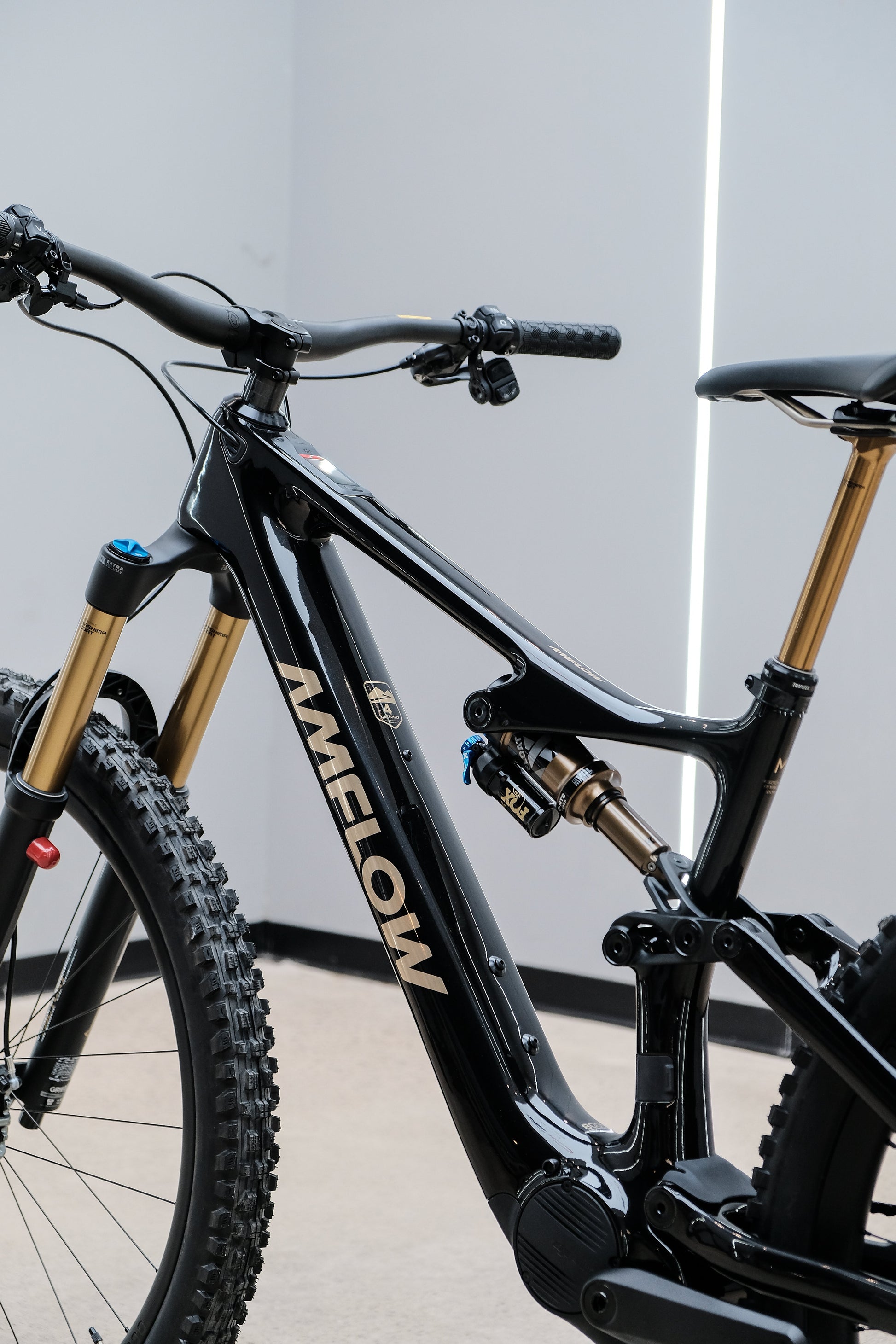

2026 New AMFLOW PL Carbon Pro

Frame & Suspension:
Frame: Carbon fiber frame, lightweight and strong.
Fork: 2026 FOX 36 SL Factory, 160 mm travel, GRIP X2 damper, 15x110 mm axle, 44 mm offset.
Rear Shock: FOX Float X Factory, Trunnion mount (185×55 mm), EVOL air sleeve, 2-position adjustment w/ LSC adjustment.

Electric Assist System:
Motor: Avinox M1, 105 Nm torque.
Battery: 800 Wh Avinox built-in battery.
Display: 2-inch OLED touchscreen, integrated into the frame.
Wireless Controllers: Left & right handlebar Avinox controllers.
Charger: 12 A / 508 W fast charger, 75% charge in 1.5 hours.

Drivetrain & Braking:
Shifter & Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable.
Chainring: SRAM Eagle Transmission E-MTB 34 T.
Crankset: DJI Avinox SL (M/L: 155 mm, XL/XXL: 160 mm).
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Brakes: Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Geometry (Size L Example):
Reach: 475 mm.
Stack: 628 mm.
Wheelbase: 1255 mm.
Chainstay: 445 mm.
Head Tube Angle: 64.5°.
Seat Tube Angle: 77°.

Power Modes:
Eco, Trail, Turbo, Auto, Boost.
Auto mode adjusts assist based on terrain.
Boost mode delivers up to 120 Nm torque and 1000 W peak power.

Weight:
Approx. 21.2 kg (Size L, may vary by configuration).
